I. Story

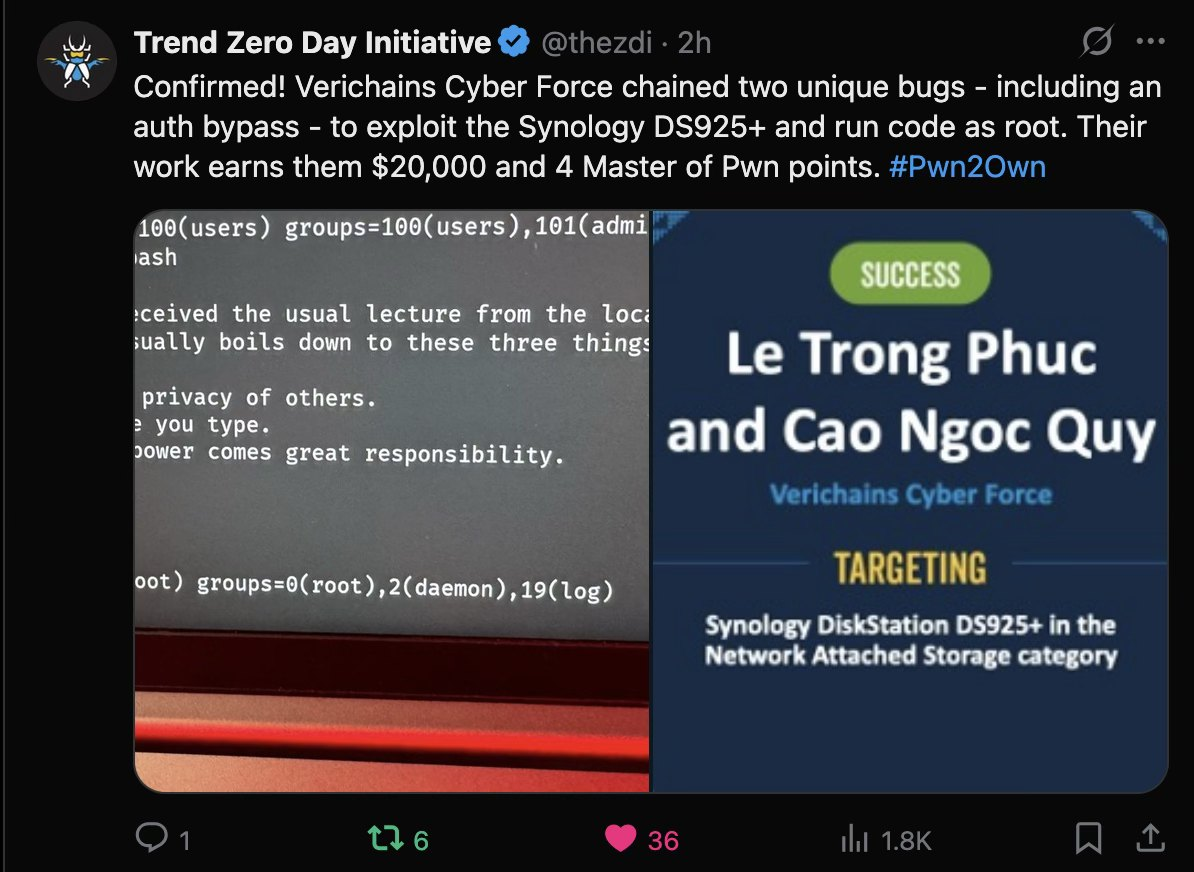

Getting into Pwn2Own that time was a bit of a lucky break for me: I found the bug and bypassed the requirement right before the registration deadline. When I first started hunting, I didn’t know anything about pwn, so I collabed with my friend (@ngocquy0307) to help me out during the process, reversing the parts of the code I couldn’t understand, and making sure we didn’t miss any pwn bugs. As for me, I decided to focus on logic vulnerabilities.

Not long before the competition, I happened to find an SSO bypass bug in a small Microsoft plugin. For some reason I had this gut feeling — like my ancestors were guiding me — so when I started auditing, I decided to make SSO my first target. And luckily enough, the app’s SAML SSO really did have a bug.

We didn’t use any AI throughout this whole bug-hunting process.

II. Analyst

SYNOPAMSSO::samlAuth Workflow

The SYNOPAMSSO::samlAuth function handles the logic when a user logs in via SAML SSO.

int samlAuth(const std::string& samlResponseB64, std::string& outUser)
{
    SYNO::SSO::SSOSAMLClient client;    // [1]
    std::string resp = samlResponseB64;
    for (char& c : resp)
        if (c == ' ')
            c = '+';

    client.VerifySamlResponse(resp);    // [2]
    const std::string& samlUser = client.m_nameId;

    char realName[1024] = {0};
    if (SLIBUserRealNameGet(samlUser.c_str(), realName, sizeof realName) < 0) {
        syslog(LOG_ERR, "%s:%d no such user: %s",
               "saml_auth.cpp", 30, samlUser.c_str());
        return 2;
    }

    if (strcasecmp(samlUser.c_str(), realName) != 0) {
        syslog(LOG_ERR, "%s:%d username not match:  %s, %s",
               "saml_auth.cpp", 34, samlUser.c_str(), realName);
        return 2;
    }

    bool qualified = std::strchr(samlUser.c_str(), '\\')
                  || std::strchr(samlUser.c_str(), '@');

    if (!qualified && !client.m_allowLocalUser) {     // [3]
        syslog(LOG_ERR, "%s:%d user is local:  %s, %s",
               "saml_auth.cpp", 40, samlUser.c_str(), realName);
        return 2;
    }

    outUser = samlUser;
    return 0;
}

__int64 __fastcall SYNOPAMSSO::samlAuth(std::string *samlRes, std::string *outUser)
{
  // [...]
  std::string nameID; // [rsp+40h] [rbp-600h] BYREF
  _BYTE v28[248]; // [rsp+60h] [rbp-5E0h] BYREF
  __int64 v29; // [rsp+158h] [rbp-4E8h]
  __int64 v30; // [rsp+160h] [rbp-4E0h]
  // [...]

  SYNO::SSO::SSOSAMLClient::SSOSAMLClient((SYNO::SSO::SSOSAMLClient *)v28); // [1]
  data = samlRes->data;
  size = samlRes->size;
  v24 = (std::string *)v26;
  memset(v32, 0, sizeof(v32));
  string::string(&v24, data, &data[size]);   // basic_string<char>::_M_construct
  v4 = v24;
  for ( i = (std::string *)((char *)v24 + v25); i != v4; v4 = (std::string *)((char *)v4 + 1) )
  {
    if ( LOBYTE(v4->data) == 32 )
      LOBYTE(v4->data) = 43;
  }
  SYNO::SSO::SSOSAMLClient::VerifySamlResponse(v28, &v24, 0.0); //  [2]
  nameID.data = nameID.local_str;
  string::string(&nameID, v29, v29 + v30);
  v6 = SLIBUserRealNameGet(nameID.data, v32, 1024LL);
  if ( nameID.data != nameID.local_str )
    operator delete(nameID.data, *(_QWORD *)nameID.local_str + 1LL);
  nameID.data = nameID.local_str;
  v7 = v29 + v30;
  if ( v6 < 0 )
  {
    string::string(&nameID, v29, v7);
    __syslog_chk(3LL, 2LL, "%s:%d no such user: %s", "saml_auth.cpp", 30, nameID.data);
    goto LABEL_34;
  }
  string::string(&nameID, v29, v7);
  v8 = (std::string *)nameID.data;
  v9 = strcasecmp(nameID.data, (const char *)v32);
  if ( v8 != (std::string *)nameID.local_str )
    operator delete(v8, *(_QWORD *)nameID.local_str + 1LL);
  nameID.data = nameID.local_str;
  v10 = v29 + v30;
  if ( v9 )
  {
    string::string(&nameID, v29, v10);
    __syslog_chk(3LL, 2LL, "%s:%d username not match:  %s, %s", "saml_auth.cpp", 34, nameID.data, (const char *)v32);
    goto LABEL_34;
  }
  string::string(&nameID, v29, v10);
  v11 = nameID.data;
  if ( nameID.data )
  {
    s = nameID.data;
    v11 = nameID.data;
    v12 = strchr(nameID.data, 92);
    v13 = 2LL;
    if ( !v12 )
    {
      v11 = (char *)s;
      v13 = strchr(s, 64) == 0LL ? 1 : 8;
    }
    if ( v11 == nameID.local_str )
      goto LABEL_15;
  }
  else
  {
    LODWORD(v13) = 0;
  }
  sa = v13;
  operator delete(v11, *(_QWORD *)nameID.local_str + 1LL);
  v13 = sa;
LABEL_15:
  nameID.data = nameID.local_str;
  if ( v31 || (v14 = 260LL, _bittest64(&v14, v13)) )
  {
    string::string(&nameID, v29, v29 + v30);
    local_str = (std::string *)outUser->data;
    if ( nameID.data == nameID.local_str )
    {
      v19 = nameID.size;
      if ( nameID.size )
      {
        if ( nameID.size == 1 )
          LOBYTE(local_str->data) = nameID.local_str[0];
        else
          memcpy(local_str, nameID.local_str, nameID.size);
        v19 = nameID.size;
        local_str = (std::string *)outUser->data;
      }
      outUser->size = v19;
      *((_BYTE *)&local_str->data + v19) = 0;
      local_str = (std::string *)nameID.data;
      goto LABEL_21;
    }
    if ( local_str == (std::string *)outUser->local_str )
    {
      v20 = _mm_loadu_si128((const __m128i *)&nameID.size);
      outUser->data = nameID.data;
      *(__m128i *)&outUser->size = v20;
    }
    else
    {
      v16 = _mm_loadu_si128((const __m128i *)&nameID.size);
      v17 = *(_QWORD *)outUser->local_str;
      outUser->data = nameID.data;
      *(__m128i *)&outUser->size = v16;
      if ( local_str )
      {
        nameID.data = (char *)local_str;
        *(_QWORD *)nameID.local_str = v17;
        goto LABEL_21;
      }
    }
    nameID.data = nameID.local_str;
    local_str = (std::string *)nameID.local_str;
LABEL_21:
    nameID.size = 0LL;
    LOBYTE(local_str->data) = 0;
    if ( nameID.data != nameID.local_str )
      operator delete(nameID.data, *(_QWORD *)nameID.local_str + 1LL);
    goto LABEL_23;
  }
  string::string(&nameID, v29, v29 + v30);
  __syslog_chk(3LL, 2LL, aSDUserIsLocalS_0, "saml_auth.cpp", 40LL, nameID.data, v32);
LABEL_34:
  if ( nameID.data != nameID.local_str )
    operator delete(nameID.data, *(_QWORD *)nameID.local_str + 1LL);
  v9 = 2;
LABEL_23:
  if ( v24 != (std::string *)v26 )
    operator delete(v24, v26[0] + 1LL);
  SYNO::SSO::SSOSAMLClient::~SSOSAMLClient((SYNO::SSO::SSOSAMLClient *)v28);
  return v9;
}

The function performs two main tasks: first, it initializes the SAML client [1], and then uses it to verify the SAML response [2]. The entire SAML validation logic takes place inside verifySamlResponse.

[1] `SSOSAMLClient Constructor`

SSOSAMLClient():  (constructor — loads SAML config into the client)

  Fields (all initialized to empty/false by default):
    idpIssuerUrl, acsUrl, idpEntityId, nameidFormat, name,
    verifyMode, configPath, certPath, matchLocalUser

  1. Read /usr/syno/etc/ssoclient/saml.conf into a JsonValue
     └─ read fails → return early, leave all fields at defaults

  2. Store the parsed JSON in the base JsonValue (so callers can see the raw config)

  3. Pull individual fields from the config (each falls back to a default if missing):
       • idpIssuerUrl   ← config["saml_idp_issuer_url"]       or ""
       • acsUrl         ← config["saml_acs_url"]              or ""
       • idpEntityId    ← config["saml_idp_entity_id"]        or ""
       • name           ← config["saml_name"]                 or ""
       • matchLocalUser ← config["saml_match_local_user"]     or false
       • verifyMode     ← config["saml_response_signature"]   or "response"

  4. Override with hardcoded constants (config values for these are ignored):
       • nameidFormat = "urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified"
       • configPath   = "/usr/syno/etc/ssoclient/saml.conf"
       • certPath     = "/usr/syno/etc/ssoclient/saml_cert.ca"

class SSOSAMLClient : public Json::Value {
public:
    SSOSAMLClient();
    bool readSAMLConfig(Json::Value& out);

    std::string idpIssuerUrl;
    std::string acsUrl;
    std::string idpEntityId;
    std::string nameidFormat;
    std::string name;
    std::string mNameId;
    std::string verifyMode;
    std::string configPath;
    std::string certPath;
    bool        matchLocalUser;
};

SSOSAMLClient::SSOSAMLClient()
    : Json::Value(Json::nullValue)
    , matchLocalUser(false)
{
    Json::Value config(Json::nullValue);
    if (!readSAMLConfig(config))
        return;

    *static_cast<Json::Value*>(this) = config;

    idpIssuerUrl   = JsGetStr(config, "saml_idp_signin_url");
    acsUrl         = JsGetStr(config, "saml_acs_url");
    idpEntityId    = JsGetStr(config, "saml_idp_entity_id");
    name           = JsGetStr(config, "saml_name");
    matchLocalUser = JsGetBool(config, "saml_allow_local_user", false);
    verifyMode     = JsGetStr(config, "saml_response_signature");

    nameidFormat   = "urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified";
    configPath     = "/usr/syno/etc/ssoclient/saml.conf";
    certPath       = "/usr/syno/etc/ssoclient/saml_cert.ca";
}

bool SSOSAMLClient::readSAMLConfig(Json::Value& out)
{
    static const char* kConfPath = "/usr/syno/etc/ssoclient/saml.conf";

    RunAs guard(0, 0, "sso_saml.cpp", 494);
    if (SLIBCFileExist(kConfPath)) {
        if (SLIBCFileExist(kConfPath) == 1) {
            if (!out.fromFile(kConfPath)) {
                syslog(LOG_ERR, "%s:%d failed to load json file", "sso_saml.cpp", 506);
                throw std::runtime_error("failed to load json file");
            }
        }
        if (!out.isMember("saml_response_signature"))
            out["saml_response_signature"] = "response";
        return true;
    }

    out["sso_saml_enable"]              = "";
    out["saml_name"]                    = "SAML";
    out["saml_idp_entity_id"]           = "";
    out["saml_idp_signin_url"]          = "";
    out["saml_acs_url"]                 = "";
    out["saml_idp_certificate"]         = "";
    out["saml_valid_date"]              = "";
    out["saml_idp_certificate_expired"] = "";
    return false;
}

[2] `verifySamlResponse`

verifySamlResponse(samlResponseB64):

  1. Initialize OpenSAML, then Xerces
     └─ init fail → throw "SAMLConfig::getConfig().init failed"

  2. Base64-decode the payload
     └─ decode fail → throw "decoded Fail"

  3. Parse XML into a DOM, then build the typed XMLObject tree
     └─ doc null     → throw "doc is null"
     └─ object null  → throw "source is null"

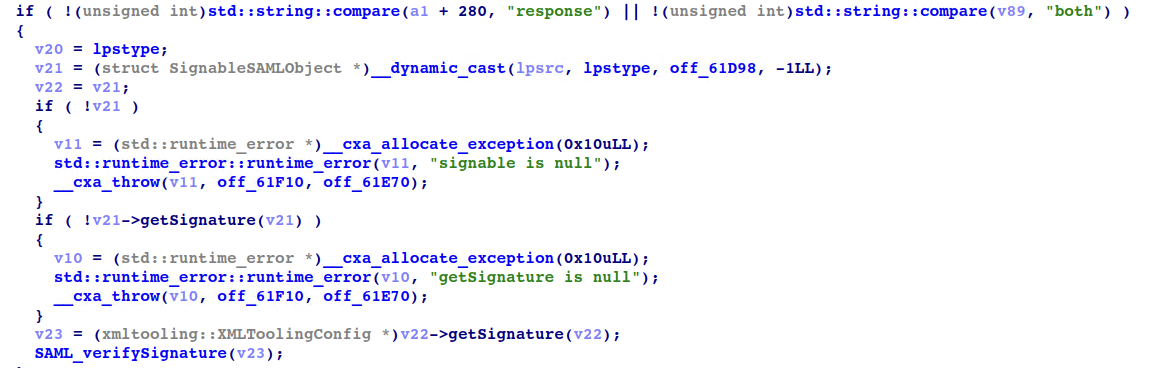

  4. If SSOSAMLClient.verifyMode ∈ {response, both}: verify the <Response> signature
     └─ not a SignableObject → throw "signable is null"
     └─ no <Signature>       → throw "getSignature is null"
     └─ signature invalid    → throw (inside SAML_verifySignature, e.g.
                                "resolve fail" / "certificate can't be verified")

  5. Message must be a samlp:Response
     └─ not a Response → throw "message was not a samlp:Response"

  6. Status must be Success
     └─ Status null, OR StatusCode null, OR value ≠ ...:status:Success
        → throw "attribute authority returned a SAML error"

  7. Schema-validate the Response

  8. Response Issuer must match idpEntityId
     └─ Issuer missing  → throw "issuer is null"

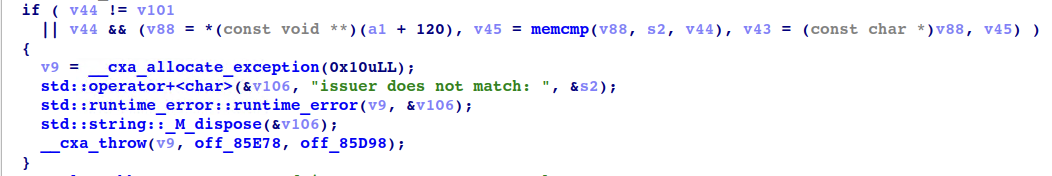

     └─ does not match  → throw "issuer does not match: <value>"
     └─ matches         → log(debug) "issuer: <idpEntityId>:<value>"

  9. Must contain at least one <Assertion>
     └─ empty → throw "resolve is empty"

 10. Iterate the Assertions in order and take the FIRST one that passes
     every check below:

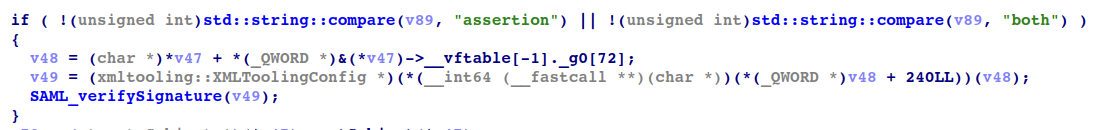

       a. If SSOSAMLClient.verifyMode ∈ {assertion, both}: verify the Assertion's signature.
          └─ on failure SAML_verifySignature THROWS (aborts the whole call;
             this is NOT a skip — later assertions are never reached).

       b. Skip this assertion (log only, no throw → continue to the next) if:
           - Subject missing                                → log "subject is null"

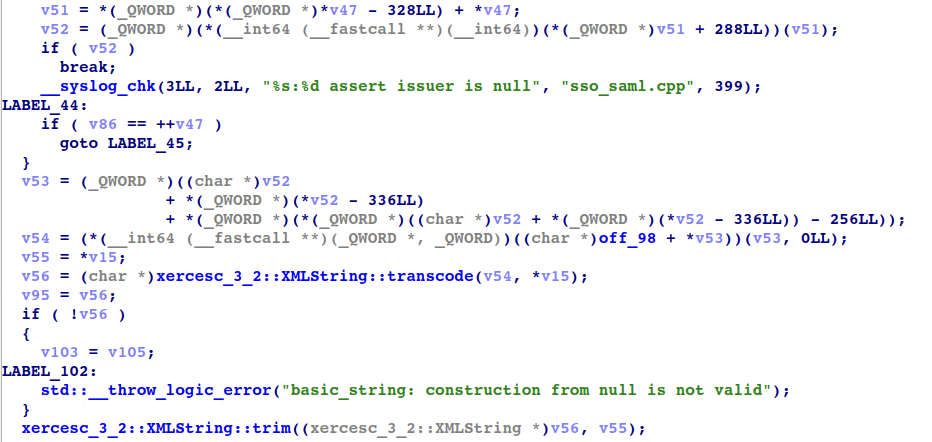

           - Issuer missing                                 → log "assert issuer is null"
           - Issuer ≠ idpEntityId                           → log "issuer does not match: <value>"
           - <Conditions> present AND now <  NotBefore      → log "Assertion is not yet valid."
           - <Conditions> present AND now ≥  NotOnOrAfter   → log "Assertion is no longer valid."
          (If the Assertion has no <Conditions> element, the validity window
           is NOT enforced.)

       c. Otherwise every check passed:
           - nameId = trimmed text of Subject's NameID
           - STOP — the first matching assertion wins; remaining assertions
             are ignored (the binary breaks out of the loop here).
          (NameID is read unconditionally and is NOT null-checked: a missing
           NameID is not a skip condition.)

 11. nameId must not be empty
     └─ empty → throw "nameId is empty"   (no assertion passed every check)

 12. Teardown: delete the object tree, destroy the input sources,
     then SAMLConfig.term()

long SSOSAMLClient::VerifySamlResponse(const std::string& samlResponseB64)
{
    // --- 1. Initialize OpenSAML, then Xerces. -------------------------------
    opensaml::SAMLConfig& saml = opensaml::SAMLConfig::getConfig();
    if (!saml.init(/*initXMLTooling=*/true))
        throw std::runtime_error("SAMLConfig::getConfig().init failed");
    xercesc::XMLPlatformUtils::Initialize();

    // --- 2. Base64-decode the payload. --------------------------------------
    XMLSize_t decodedLen = 0;
    XMLByte*  decoded    = xercesc::Base64::decode(
        reinterpret_cast<const XMLByte*>(samlResponseB64.data()), &decodedLen);
    if (!decoded)
        throw std::runtime_error("decoded Fail");

    // --- 3. Parse the XML into a DOM, then build a typed XMLObject tree. -----
    xercesc::MemBufInputSource   membuf(decoded, decodedLen, "SAMLResponse", true);
    xercesc::Wrapper4InputSource source(&membuf, false);

    xercesc::DOMDocument* doc =
        xmltooling::XMLToolingConfig::getConfig().getParser().parse(source);
    if (!doc)
        throw std::runtime_error("doc is null");
    xmltooling::XMLObject* object =
        xmltooling::XMLObjectBuilder::buildOneFromElement(
            doc->getDocumentElement(), true);
    if (!object)
        throw std::runtime_error("source is null");

    // --- 4. If verifyMode is "response" or "both", verify the <Response>
    //        signature. -------------------------------------------------------
    if (this->verifyMode == "response" || this->verifyMode == "both") {
        auto* signable = dynamic_cast<xmltooling::SignableObject*>(object);
        if (!signable)
            throw std::runtime_error("signable is null");
        if (!signable->getSignature())
            throw std::runtime_error("getSignature is null");
        verifySignature(signable->getSignature());
    }

    // --- 5. The message must be a samlp:Response. ---------------------------
    auto* response = dynamic_cast<opensaml::saml2p::Response*>(object);
    if (!response)
        throw std::runtime_error("message was not a samlp:Response");

    // --- 6. The SAML status must be "Success". A null Status, a null
    //        StatusCode, or any value other than SUCCESS raise the same error.
    opensaml::saml2p::Status* status = response->getStatus();
    if (!status
        || !status->getStatusCode()
        || !xercesc::XMLString::equals(status->getStatusCode()->getValue(),
                                       opensaml::saml2p::StatusCode::SUCCESS))
        throw std::runtime_error("attribute authority returned a SAML error");

    // --- 7. Schema-validate the Response. -----------------------------------
    xmltooling::SchemaValidators.validate(response);

    // --- 8. The Response Issuer must match the configured IdP entity id. -----
    if (!response->getIssuer())
        throw std::runtime_error("issuer is null");

    char* issuerUtf8 = xercesc::XMLString::transcode(
        response->getIssuer()->getTextContent());
    if (!issuerUtf8)
        throw std::logic_error("basic_string: construction from null is not valid");
    xercesc::XMLString::trim(issuerUtf8);
    std::string issuer(issuerUtf8);
    xercesc::XMLString::release(&issuerUtf8);

    if (issuer != this->idpEntityId)
        throw std::runtime_error("issuer does not match: " + issuer);
    syslog(LOG_DEBUG, "%s:%d issuer: %s:%s", "sso_saml.cpp", 377,
           idpEntityId.c_str(), issuer.c_str());

    // --- 9. There must be at least one <Assertion>. -------------------------
    const std::vector<opensaml::saml2::Assertion*>& assertions =
        response->getAssertions();
    if (assertions.empty())
        throw std::runtime_error("resolve is empty");

    // --- 10. Take the NameID from the FIRST assertion that passes EVERY check.
    //         A failing check is logged (no throw) and we move to the next
    //         assertion. ---------------
    for (opensaml::saml2::Assertion* assertion : assertions) {

        // 10a. Optional per-assertion signature check.
        if (this->verifyMode == "assertion" || this->verifyMode == "both")
            verifySignature(assertion->getSignature());

        // 10b. Subject must be present.
        opensaml::saml2::Subject* subject = assertion->getSubject();
        if (!subject) {
            syslog(LOG_ERR, "%s:%d subject is null", "sso_saml.cpp", 394);
            continue;
        }

        // 10c. Issuer must be present.
        if (!assertion->getIssuer()) {
            syslog(LOG_ERR, "%s:%d assert issuer is null", "sso_saml.cpp", 399);
            continue;
        }

        // 10d. Assertion Issuer text must match the configured IdP entity id.
        //      (inlined getTextContent + transcode + trim -> std::string)
        char* aIssuerUtf8 = xercesc::XMLString::transcode(
            assertion->getIssuer()->getTextContent());
        if (!aIssuerUtf8)
            throw std::logic_error("basic_string: construction from null is not valid");
        xercesc::XMLString::trim(aIssuerUtf8);
        std::string assertionIssuer(aIssuerUtf8);
        xercesc::XMLString::release(&aIssuerUtf8);

        if (assertionIssuer != this->idpEntityId) {
            syslog(LOG_ERR, "%s:%d issuer does not match: %s", "sso_saml.cpp",
                   406, assertionIssuer.c_str());
            continue;
        }

        // 10e. If <Conditions> are present, enforce the validity window.
        if (opensaml::saml2::Conditions* cond = assertion->getConditions()) {
            time_t now = time(nullptr);
            if (now < cond->getNotBefore()) {
                syslog(LOG_ERR, "%s:%d Assertion is not yet valid.",
                       "sso_saml.cpp", 413);
                continue;
            }
            if (now >= cond->getNotOnOrAfter()) {
                syslog(LOG_ERR, "%s:%d Assertion is no longer valid.",
                       "sso_saml.cpp", 418);
                continue;
            }
        }

        // 10f. All checks passed: this assertion's NameID is the user. Stop.
        //      (inlined getTextContent + transcode + trim -> std::string)
        char* nameIdUtf8 = xercesc::XMLString::transcode(
            subject->getNameID()->getTextContent());
        if (!nameIdUtf8)
            throw std::logic_error("basic_string: construction from null is not valid");
        xercesc::XMLString::trim(nameIdUtf8);
        m_nameId = nameIdUtf8;
        xercesc::XMLString::release(&nameIdUtf8);
        break;
    }

    // --- 11. A user must have been extracted. -------------------------------
    if (m_nameId.empty())
        throw std::runtime_error("nameId is empty");

    // --- 12. Teardown. ------------------------------------------------------
    delete object;
    return opensaml::SAMLConfig::getConfig().term(true);
}

__int64 __fastcall SYNO::SSO::SSOSAMLClient::VerifySamlResponse(__int64 a1, _QWORD *a2)
{
  // [...]
  Config = opensaml::SAMLConfig::getConfig((opensaml::SAMLConfig *)a1);
  if ( !(*(unsigned __int8 (__fastcall **)(__int64, __int64))(*(_QWORD *)Config + 16LL))(Config, 1LL) )
  {
    // [...]
  }
  xercesc_3_2::XMLPlatformUtils::Initialize(off_61C08, 0LL, 0LL, 0LL);
  v14 = xercesc_3_2::Base64::decode(*a2, &v91, 0LL, 0LL);
  if ( !v14 )
  {
    // [...]
  }
  v15 = (char **)xercesc_3_2::XMLPlatformUtils::fgMemoryManager; // xercesc_3_2::XMLPlatformUtils::fgMemoryManager non set -> null
  xercesc_3_2::MemBufInputSource::MemBufInputSource(v99, v14, v91, "SAMLResponse", 1LL, *(_QWORD *)xercesc_3_2::XMLPlatformUtils::fgMemoryManager);
  xercesc_3_2::Wrapper4InputSource::Wrapper4InputSource(v98, v99, 0LL, *v15);
  v16 = xmltooling::XMLToolingConfig::getConfig((xmltooling::XMLToolingConfig *)v98);
  v17 = (*(__int64 (__fastcall **)(__int64))(*(_QWORD *)v16 + 64LL))(v16); // xmltooling::XMLToolingInternalConfig::getParser() const
  v18 = xmltooling::ParserPool::parse(v17, v98);
  if ( !v18 )
  {
    // [...]
  }
  v92 = v18;
  v19 = (*(__int64 (__fastcall **)(__int64))(*(_QWORD *)v18 + 104LL))(v18); // non-virtual thunk to xercesc_3_2::DOMDocumentImpl::getDocumentElement() const
  lpsrc = (void *)xmltooling::XMLObjectBuilder::buildOneFromElement(v19, 1LL);
  v93 = lpsrc;
  v92 = 0LL;
  if ( !lpsrc )
  {
    // [...]
  }
  v89 = a1 + 280;
  if ( !(unsigned int)std::string::compare(a1 + 280, "response") || !(unsigned int)std::string::compare(v89, "both") ) // check verifyMode
  {
    v20 = lpstype;
    v21 = __dynamic_cast(lpsrc, lpstype, off_61D98, -1LL);
    v22 = v21;
    // [...]
    v23 = (*(__int64 (__fastcall **)(void *))(*(_QWORD *)v22 + 240LL))(v22);
    sub_3CFF0(v23); // verify signature
  }
  else
  {
    v20 = lpstype;
  }
  v24 = (char *)__dynamic_cast(lpsrc, v20, off_61E90, -1LL);
  v25 = v24;
  if ( !v24 )
  {
    // [...]
  }
  if ( !(*(__int64 (__fastcall **)(char *))(*(_QWORD *)&v24[*(_QWORD *)(*(_QWORD *)v24 - 472LL)] + 416LL))(&v24[*(_QWORD *)(*(_QWORD *)v24 - 472LL)]) ) // virtual thunk to opensaml::saml2p::StatusResponseTypeImpl::getStatus() const
    goto LABEL_94;
  v26 = (*(__int64 (__fastcall **)(char *))(*(_QWORD *)&v25[*(_QWORD *)(*(_QWORD *)v25 - 472LL)] + 416LL))(&v25[*(_QWORD *)(*(_QWORD *)v25 - 472LL)]); // virtual thunk to opensaml::saml2p::StatusResponseTypeImpl::getStatus() const
  if ( !(*(__int64 (__fastcall **)(__int64))(*(_QWORD *)v26 + 280LL))(v26) ) // virtual thunk to opensaml::saml2p::StatusImpl::getStatusCode() const
    goto LABEL_94;
  v27 = (*(__int64 (__fastcall **)(char *))(*(_QWORD *)&v25[*(_QWORD *)(*(_QWORD *)v25 - 472LL)] + 416LL))(&v25[*(_QWORD *)(*(_QWORD *)v25 - 472LL)]); // virtual thunk to opensaml::saml2p::StatusResponseTypeImpl::getStatus() const
  v28 = (*(__int64 (__fastcall **)(__int64))(*(_QWORD *)v27 + 280LL))(v27); // virtual thunk to opensaml::saml2p::StatusImpl::getStatusCode() const
  v29 = (__int16 *)(*(__int64 (__fastcall **)(__int64))(*(_QWORD *)v28 + 248LL))(v28); // virtual thunk to opensaml::saml2p::StatusCodeImpl::getValue() const
  // [...]
  xmltooling::ValidatorSuite::validate(off_61BF8, &v25[*(_QWORD *)(*(_QWORD *)v25 - 256LL)]);
  if ( !(*(__int64 (__fastcall **)(char *))(*(_QWORD *)&v25[*(_QWORD *)(*(_QWORD *)v25 - 328LL)] + 288LL))(&v25[*(_QWORD *)(*(_QWORD *)v25 - 328LL)]) ) // virtual thunk to opensaml::saml2p::StatusResponseTypeImpl::getIssuer() const
  {
    // [...] error
  }
  v33 = (_QWORD *)(*(__int64 (__fastcall **)(char *))(*(_QWORD *)&v25[*(_QWORD *)(*(_QWORD *)v25 - 328LL)] + 288LL))(&v25[*(_QWORD *)(*(_QWORD *)v25 - 328LL)]); // virtual thunk to opensaml::saml2p::StatusResponseTypeImpl::getIssuer() const
  v34 = (char *)v33
      + *(_QWORD *)(*v33 - 336LL)
      + *(_QWORD *)(*(_QWORD *)((char *)v33 + *(_QWORD *)(*v33 - 336LL)) - 256LL);
  issue_content = (*(__int64 (__fastcall **)(char *, _QWORD))(*(_QWORD *)v34 + 152LL))(v34, 0LL); // virtual thunk to xmltooling::AbstractSimpleElement::getTextContent(unsigned int) const
  v36 = *v15;
  _issue_content = (char *)xercesc_3_2::XMLString::transcode(v35, *v15);
  s = _issue_content;
  if ( !_issue_content )
  {
    s2 = v102;
LABEL_102:
    std::__throw_logic_error("basic_string: construction from null is not valid");
  }
  xercesc_3_2::XMLString::trim((xercesc_3_2::XMLString *)_issue_content, v36); // trim(issuer, "")
  v38 = s;
  // std::string s2 = string::string(_issue_content = s, strlen(_issue_content))
  v42 = s2.data;
  v43 = (const char *)a1[15]; // get size issuer config
  v44 = a1[16]; // get issuer from config
  if ( v44 != s2.size // check size
    || v44 && (v88 = (const void *)a1[15], v45 = memcmp(v88, s2.data, v44), v43 = (const char *)v88, v45) ) // compare issuer config với samlres
  {
    // [...]
  }

  v46 = (*(__int64 (__fastcall **)(char *, __int64))(*(_QWORD *)v25 + 448LL))(v25, 2LL);
  v47 = *(_QWORD **)v46;
  v86 = *(_QWORD **)(v46 + 8);
  if ( *(_QWORD **)v46 == v86 )
  {
    // [...]
  }
  while ( 1 )
  {
    if ( !(unsigned int)std::string::compare(v89, "assertion") || !(unsigned int)std::string::compare(v89, "both") )
    {
      v48 = *(_QWORD *)(*(_QWORD *)*v47 - 304LL) + *v47;
      v49 = (*(__int64 (__fastcall **)(__int64))(*(_QWORD *)v48 + 240LL))(v48);
      sub_3CFF0(v49); // verify signature
    }

    // same flow
    v50 = (*(__int64 (__fastcall **)(_QWORD))(*(_QWORD *)*v47 + 352LL))(*v47);
    if ( !v50 )
    {
      __syslog_chk(3LL, 2LL, "%s:%d subject is null", "sso_saml.cpp", 394);
      goto LABEL_44;
    }
    v51 = *(_QWORD *)(*(_QWORD *)*v47 - 328LL) + *v47;
    v52 = (_QWORD *)(*(__int64 (__fastcall **)(__int64))(*(_QWORD *)v51 + 288LL))(v51);
    if ( v52 )
      break;
    __syslog_chk(3LL, 2LL, "%s:%d assert issuer is null", "sso_saml.cpp", 399);
LABEL_44:
    if ( v86 == ++v47 )
      goto LABEL_45;
  }
  v53 = (char *)v52
      + *(_QWORD *)(*v52 - 336LL)
      + *(_QWORD *)(*(_QWORD *)((char *)v52 + *(_QWORD *)(*v52 - 336LL)) - 256LL);
  v54 = (*(__int64 (__fastcall **)(char *, _QWORD))(*(_QWORD *)v53 + 152LL))(v53, 0LL);
  v55 = *v15;
  v56 = (char *)xercesc_3_2::XMLString::transcode(v54, *v15);
  v95 = v56;
  // [...]
  xercesc_3_2::XMLString::trim((xercesc_3_2::XMLString *)v56, v55);
  v57 = v95;
  // get issuer and check
  v61 = (const char *)v103;
  v62 = *(_QWORD *)(a1 + 128);
  if ( v62 != v104 || v62 && memcmp(*(const void **)(a1 + 120), v103, v62) )
  {
   // [...]
  }
  if ( !(*(__int64 (__fastcall **)(_QWORD))(*(_QWORD *)*v47 + 368LL))(*v47) ) // virtual thunk to opensaml::saml2::AssertionImpl::getConditions() const
    goto LABEL_58; // nhảy
  // [...]
LABEL_58:
  v68 = (_QWORD *)(*(__int64 (__fastcall **)(__int64))(*(_QWORD *)v50 + 264LL))(v50); // virtual thunk to opensaml::saml2::SubjectImpl::getNameID() const
  v69 = (char *)v68
      + *(_QWORD *)(*v68 - 336LL)
      + *(_QWORD *)(*(_QWORD *)((char *)v68 + *(_QWORD *)(*v68 - 336LL)) - 256LL);
  v70 = (*(__int64 (__fastcall **)(char *, _QWORD))(*(_QWORD *)v69 + 152LL))(v69, 0LL); // virtual thunk to xmltooling::AbstractSimpleElement::getTextContent(unsigned int) const
  v71 = *v15;
  v72 = (char *)xercesc_3_2::XMLString::transcode(v70, *v15);
  v96 = v72;
  if ( !v72 )
  {
    v106 = &src.m128i_u64[1];
LABEL_100:
    std::__throw_logic_error("basic_string: construction from null is not valid");
  }
  xercesc_3_2::XMLString::trim((xercesc_3_2::XMLString *)v72, v71);
  v73 = v96;
  // std::string src = string::string(nameID, len(nameID))
  // a1+248 = nameID, a1+256 = size
  // [...]
  v63 = opensaml::SAMLConfig::getConfig((opensaml::SAMLConfig *)v99);
  return (*(__int64 (__fastcall **)(__int64, __int64))(*(_QWORD *)v63 + 24LL))(v63, 1LL);
}

After reading through the pseudocode and snippets above, you’ve probably already noticed the flaw in the application’s logic within the SAML SSO feature. Now, let’s dive into the detailed analysis.

Bypassing Authentication via SAML SSO

Inside the verifySamlResponse function, when checking the signature at steps 4 and 10a,

long SSOSAMLClient::VerifySamlResponse(const std::string& b64Response)
{
	[...]
	if (this->verifyMode == "response" || this->verifyMode == "both") {
		auto* signable = dynamic_cast<xmltooling::SignableObject*>(src);
		if (!signable)
			throw std::runtime_error("signable is null");
		if (!signable->getSignature())
			throw std::runtime_error("getSignature is null");
		verifySignature(signable->getSignature());
	[...]

	for (opensaml::saml2::Assertion* assertion : assertions) {
		if (this->verifyMode == "assertion" || this->verifyMode == "both")
			verifySignature(assertion->getSignature());
	[...]
}

Here, the developer implicitly assumed that the value of verifyMode would always be one of three options: {"response", "assertion", "both"}. As a result, if verifyMode holds any value other than those three, the signature verification step can be completely bypassed. The value of verifyMode is assigned within the SSOSAMLClient constructor. Looking at the SSOSAMLClient constructor, if readSAMLConfig returns false, the constructor returns early, leaving the object with its attributes defaulted to empty strings or false

readSAMLConfig:

bool qualified = std::strchr(samlUser.c_str(), '\\')
			  || std::strchr(samlUser.c_str(), '@');

if (!qualified && !client.m_allowLocalUser) {     // [3]
	syslog(LOG_ERR, "%s:%d user is local:  %s, %s",
		   "saml_auth.cpp", 40, samlUser.c_str(), realName);
	return 2;
}

Our saml_match_local_user in SSOSAMLClient is currently set to false, meaning we can only log into LDAP or AD (Active Directory) accounts at this point. According to ZDI’s requirements, providing a pre-known username is considered unrealistic and therefore unacceptable. However, ZDI does accept the fact that the default AD admin account follows the format <NetBIOS>/Administrator. The NetBIOS name can be easily obtained through enumeration on Synology NAS. Once logged in successfully as an administrator, there are multiple ways to achieve RCE using various admin-privileged features.

The full picture

The whole bug is a chain of small assumptions that happen to line up perfectly. Here’s what it looks like end to end. The SAML endpoint is live even when SAML SSO has never been configured. Nothing in samlAuth, the SSOSAMLClient constructor, or verifySamlResponse checks whether the feature is actually enabled.

A missing config silently degrades to insecure defaults. If /usr/syno/etc/ssoclient/saml.conf doesn’t exist, readSAMLConfig returns false and the constructor exits early, leaving all fields at their zero values: empty strings and false. That means verifyMode is "" and saml_match_local_user is false.

An unexpected verifyMode value disables signature verification entirely. The check only runs when verifyMode is one of "response", "assertion", or "both". The developer didn’t handle the fallthrough, so verifyMode == "" skips signature checking altogether. You can forge a SAML Response with no valid signature.

The one strict check gets defeated by normalization. The Issuer must be non-empty, but must also equal the client’s Issuer, which is "". That looks like a contradiction – until you see that Issuer is trim()-ed before the comparison. An Issuer of a single space passes the non-empty check and then collapses to "", satisfying both conditions at once.

The last gate narrows the target but doesn’t close it. With saml_match_local_user set to false, local accounts are rejected and only usernames containing \ or @ are allowed (LDAP/AD users). The default AD admin <NetBIOS>\Administrator fits, and the NetBIOS name is trivially enumerable on a Synology NAS.

On any Synology DS925+ system that has never enabled SAML SSO (the default) and uses AD or LDAP, an unauthenticated attacker can forge an unsigned SAML Response, skip authentication entirely, and log in as domain administrator. RCE follows from any admin-privileged feature.

The root cause isn’t a single line. A disabled feature is still reachable. A config load failure defaults to insecure values instead of refusing to proceed. An unrecognized verify mode is treated as “skip verification” rather than “deny.” Each assumption is small. Together they’re a full pre-auth bypass.

`Conclusion`

Although it’s a bit of a pity that I found the bug too late to get the visa sorted in time to be onsite and experience the competition atmosphere in person, this was still a successful Pwn2Own participation for me. A shoutout to @ngocquy0307 for collaborating and providing a lot of support during the bug-hunting process, to @tuo4n8 for supporting me throughout the competition, to @lemauanhphong for helping me bring the bug to the contest, and last but not least, a huge thanks to Verichains for supporting me in participating in the competition.

[PWN2OWN IRELAND 2025] Bypassing Authentication via Synology DS925+ SAML SSO
